Matt Mowry, Product Manager, Igus

Introduction

Machine and equipment manufacturers today are feeling more pressure than ever to reduce costs without sacrificing machine performance — a balancing act difficult to achieve. OEMs often overlook a simple solution that can have a positive, long-term impact on profitability for themselves and their customers, i.e. — the elimination of bearing lubricant. By eliminating lubrication systems where possible, OEMs can reduce production costs while at the same time make their equipment more marketable and less expensive to operate for end users. What are the issues with bearing lubricant? According to a major ball bearing company, 54 percent of bearing failures are lubrication-related (Fig. 1).

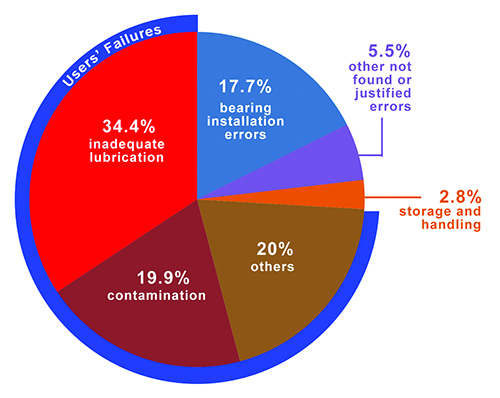

pie chart of types of lubricated related bearing failures
Figure 1. Types of lubricated-related bearing failures (Source: SKF, USA Inc.)

In a study by the Massachusetts Institute of Technology (MIT) it was estimated approximately $240 billion is lost annually (across U.S. industries) due to downtime and repairs to manufacturing equipment damaged by poor lubrication.

Improper bearing lubrication or re-lubrication accounts for up to 40 to 50 percent of machine failures. By eliminating lubrication from machinery, OEMs can minimize the costs and risks associated with maintenance for the end user. At the same time, costs related to the proper disposal of oil can be eliminated and the initial expenditure for ancillary components and processes (grease lines, zerks, manifolds, etc.) can be decreased.

There is a lower-cost, easier-tomaintain machine component that eliminates the total cost of bearing lubricants, i.e. — high-performance, dryrunning plastic bearings.

Hidden Costs of Lubrication

Proper lubrication delivery is critical for the operation of ball bearings, and most require continued maintenance for re-lubrication. The re-lubrication process typically requires scheduled machine downtime, which increases maintenance costs and causes a loss of production time. In addition, re-lubrication maintenance practices often fall short. While some processes are automated, the majority of re-lubrication is performed manually using a grease gun. This seemingly simple task actually involves a number of critical steps to ensure proper lubrication delivery, including correct amount of lube, the right grease gun, proper cleaning, and careful storage and handling conditions, just to name a few. In addition, it is critical to use the same grease for the entire lifespan of a bearing. The technical training division of Life Cycle Engineering conducted a study that found 80 percent of maintenance workers surveyed scored less than 50 percent when it came to the basic technical skills needed to perform their job “Bearing lubrication” was noted first on their list of tasks.

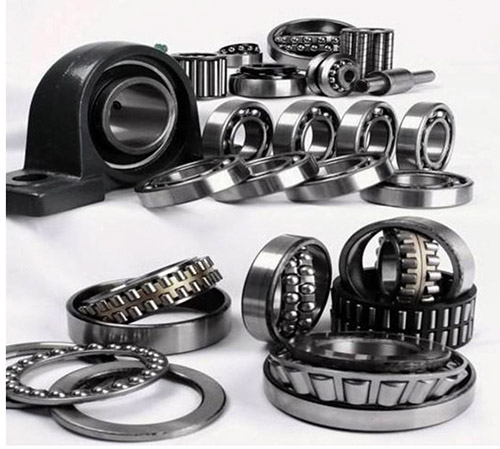

image of proper bearing lubrication for operation of ball bearings
Figure 2. Proper lubrication is critical for the operation of ball bearings.

Ancillary components for OEMs.

Using lubricated bearings can increase manufacturing complexity and expenses. They often need to be fitted with grease zerks (fittings) and manifolds, oil lines, and sometimes oil reservoirs and pumps. Not only are there extra costs associated with purchasing these components, there are also manufacturing costs associated with the machining and assembly of the mating parts.

There are also additional parts required to protect them from contaminants. According to the McNally Institute, the leading cause of bearing failure is due to contamination of the lubrication by moisture and solid particles. If as little as 0.002 percent water pollutes the lubrication system, it increases the probability of failure by 48 percent; just six percent water can reduce the lifetime by 83 percent.

Ball bearings require seals to keep oil in and unwanted water and liquids out, as well as wipers / scrapers to keep dust and debris out as well. Seals only last so long, and do not perform well in dirty and dusty environments, and can also increase friction in the application. In agricultural machinery and lawn mowers, where dust and debris are prevalent during operation, seals and wipers may require frequent replacement.

Other Costs Not Required for Self-Lubricating Bearings

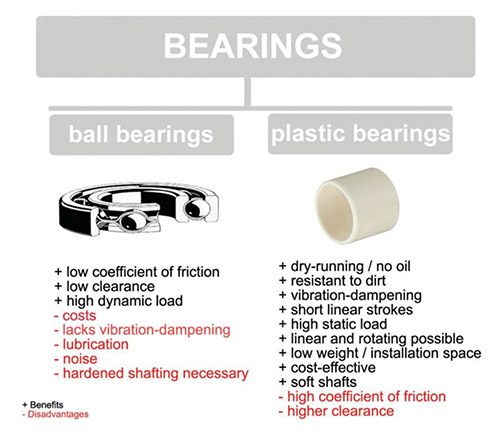

image comparing ball bearings to self-lubricating plastic plain bearings
Figure 3 Comparison chart comparing ball bearings to self-lubricating, plastic plain bearings.

Labor

A major oil company studied the time required to manually lubricate a single grease point. The results showed manual lubrication takes an average of three-minutes-per-point. The average machine has 20 grease points to maintain. This correlates to a total labor cost of $7,300 annually for maintaining 20 grease points on one machine, every day, seven days per week. Another source claims that the average plant employs 2,196 bearings and spends $60,000 in re-lubrication costs per year; of that $60,000, $57,000 is used for labor alone.

Downtime

Improper bearing lubrication or re- lubrication accounts for up to 40 to 50 percent of machine failures. When a bearing fails prematurely, a number of actions may need to be taken. Replacement of the bearings, shafting, and even motors and other parts can be very costly. If the machine needs to be taken off-line, expenses can potentially skyrocket. In a six-sigma lean manufacturing guide, it is estimated that the average cost for downtime is $500 per hour, and in some automotive and other high-volume production factories, downtime costs are considerably higher. In addition, unplanned downtime can cause a ripple effect that impacts a plant’s production schedule.

Disposal costs

According to Valin, proper disposal of lubricants by a process management company can amount to approximately 20 percent of the cost of annual lubricant expenditures. This means if a plant spends $50,000 per year on lubricants, they will spend approximately $10,000 in disposal costs. In addition, the cost of the lubrication itself can impact overall expenditures, as it is normally petroleum-based and directly linked to the price of oil.

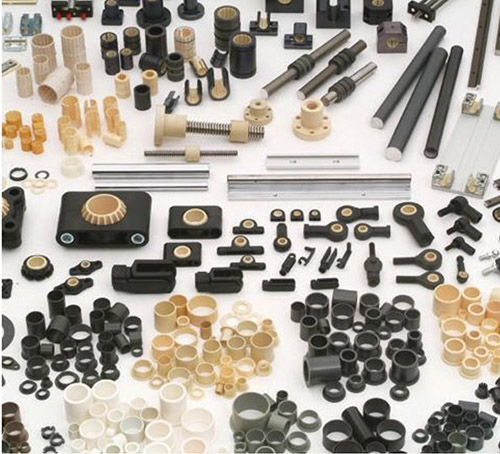

image of self-lubricating plastic bearings made from high-performance polymers
Figure 4. Self-lubricating plastic bearings from igus are made from high-performance polymers, which are corrosion-resistant and maintenance-free.

Self-Lubricating Plastic Bearings

Self-lubricating plastic bearings are made of high- performance polymers and, unlike rolling-element bearings, slide instead of roll. They consist of a base polymer that is optimized with fiber reinforcement and solid lubricants. The fiber reinforcements increase load carrying capabilities and wear-resistance, and the solid lubricants are transferred from the bearing to the micro-finish of the shaft in order to reduce friction. No external oil or grease is needed for their operation; self-lubricating bearings operate completely dry. They are an ideal solution for applications in labs and food-processing machinery that require clean, oil-free operation. Plastic bearings also perform well in dirty environments since there is no oil to attract dust and dirt, like the agricultural industry. They can be used on softer shafting, even anodized aluminum, which has excellent corrosion resistance and is usually less expensive and easier to machine than case-hardened material or stainless steel.

Eliminate maintenance costs

Using high-performance, self-lubricating plastic bearings can significantly reduce maintenance costs, as well as reduce unplanned downtime due to bearing failure. OEMs that use self lubricating plastic bearings are able to deliver a maintenance-free system that increases their end-customer’s production throughput and the overall marketability of their product. In the event that a self-lubricated bearing does need replacement, the replacement part (a small, inexpensive plastic sleeve) can be purchased for a fraction of the cost of an entire re-circulating ball bearing.

Lower production costs. Plastic bearings do not require the machining and other processes required to install ball bearings. They are less expensive and do not require grease fittings, lines or pumps. Plastic bearings also can be used on less-expensive shafting, such as aluminum or cold-rolled steel. Some companies offer online calculators to predict bearing lifetime to ensure it is ideal for the application; this eliminates the need for testing and saves time and errors in material choice.

Application parameters not conducive for self-lubricating plastic bearings:

High loads with high speeds; these lead to excessive frictional heat buildup and wear.

Highly cantilevered loads; since self-lubricating plastic bearings slide (unlike ball bearings that roll), linear applications with higher coefficients of friction may result in uneven movements for highly cantilevered loads or drive forces.

Extremely precise applications; plastic bearings have a higher running clearance than ball bearings — sometimes .001″ to .002″ — and therefore are not ideal for applications needing extreme precision.

Extreme temperatures; plastic bearings are not recommended for applications with long-term temperatures exceeding 484° Fahrenheit.

Field Application Examples Using High-Performance Plastic Bearings

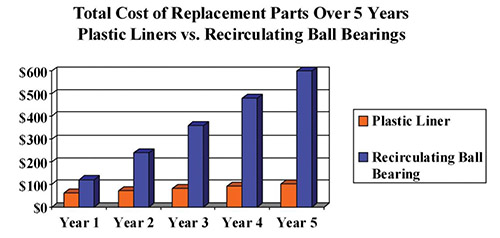

graph of the total cost of replacement costs over 5 years for plastic liners and recirculating ball bearings
Figure 5. Note: Based on ¾ inch closed linear bearing and assuming replacement is required once per year.

1. Agricultural

A manufacturer of equipment specifically for the farming industry produces ‘the Pick Planter’ — which creates individual planting row units using walking gauge wheels to deliver a consistent planting depth.

Oil-impregnated bronze bearings with graphite plugs were used to facilitate this movement — until they began causing severe problems. They were even requiring replacement two to three times a season.

On the (U.S.) West Coast, the bronze bearings were experiencing high wear and premature failure due to the very abrasive conditions caused by high levels of volcanic ash in the soil. On the (U.S.) East Coast, the high salt content in the air caused corrosion and seizure.

By replacing all 144 bronze bearings with iglide self- lubricating plastic bearings from igus, the pick arms’ lifespan was increased by 500 to 600 percent. The actual bearings cost 70 to 80 percent less than bronze bearings and were more reliable.

2. Packaging

One manufacturer specializes in vertical, form, fill and seal (v/f/f/s) packaging equipment for handling a wide range of products — from green beans to candy to detergent. The machines are capable of reaching up to 160 cycles per- minute and withstanding loads up to 15 pounds, while operating at speeds of 750 feet-per-minute.

The manufacturer had been using metal linear ball bearings. After the metal bearings scored the shafts and leaked grease on some of the machines, the company decided to replace them with self-lubricating DryLin linear plain bearings. To date, the linear bushings have surpassed the 10-million cycle mark on some of the company’s packaging machines with little to no noticeable wear.

3. Medical

In the quest to improve the way prostate cancer is detected and treated, a team of researchers from the Worcester Polytechnic Institute (WPI) in Massachusetts have developed a specialized magnetic resonance imaging (MRI)-compatible piezoelectric actuated robot.

To facilitate different types of motion, the robot uses a DryLin linear guide system and iglide plastic self-lubricating plain bearings. The linear guides facilitate translational motion of the positioning module, which provides gross positioning for the robot’s needle driver. The needle driver is a vital part of the system, as it enables the rotation and translational movement of the needle cannula: a flexible tube inserted into the patient’s body cavity for MRI-guided diagnosis and therapy.

The needle driver has a needle guide sleeve, a collet locking mechanism and passive optical tracking fiducial frame. Two plastic plain bearings are used in the front and rear of the driver to constrain the needle guide. The bearings enable the robot’s motor to rotate the needle using the collet mechanism by way of a timing belt. This rotating needle would reduce tissue damage while enhance targeting accuracy. Another 10 plain bearings were used to create a revolute joint, also known as a “pin joint” or “hinge joint”, to provide single-axis rotation.

The linear guides chosen are comprised of hard- anodized aluminum rails and carriages and high-performance plastic sliding elements, which do not interfere with the MRI procedure. The linear slides operate without messy lubrication, which is important in a sterile medical environment. They also feature a lower profile for applications where installation space is an issue.

The specific plastic plain bearings used were an ideal choice for the robot, as they are comprised of FDA- compliant polymers specifically designed for applications with contact to food or drugs.


The article “The True Cost of Bearing Lubrication” appeared in the June 2015 issue of Power Transmission Engineering. Click to download the full PDF.
